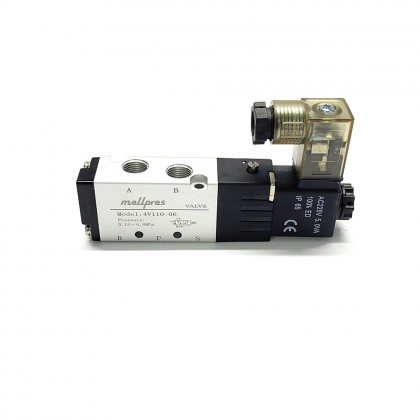

Mellpres 4V110-06 1/8" 5/2" Single Coil Pneumatic Valve 220VAC

Mellpres 4V110-06 1/8 5/2 Single Coil Pneumatic Valve 220VAC
Mellpres 4V110-06 1/8" 5/2" Single Coil Pneumatic Valve 220VAC
  • STOCK: IN STOCK
  • BRAND: MELLPRES - VRB
  • STOCK CODE: 020-V 4V110-06-AC220V-1220
  • SKU: 4V110-06-AC220V
Based on 0 reviews. | Write a review
841.34 TRY
Ex Tax: 701.12 TRY
Add to Cart
DHL E-Commerce
We deliver your orders to you with DHL E-Commerce assurance.
Fast Delivery
International Shipments Within 3-7 Days.
Live Support
Write to us with your requests.

Mellpres 4V110-06 1/8" 5/2" Single Coil Pneumatic Valve 220VAC

4V Series Pneumatic Valves are pilot-operated solenoid valves designed to offer high performance and reliability in industrial automation systems. With their compact design, low power consumption, and fast response time, the 4V100, 3V100, and 4A/3A series maximize the efficiency of your machinery.

Key Features and Advantages

  • Low Power Consumption: Energy saving through the central exhaust design of the pilot and main valves.
  • Compact & Powerful: High flow capacity (Large Flow) despite its small size.
  • Fast Response: Precise control with a response time of 0.05 seconds (Sensitive Action).
  • Long lifespan: Class F IP65 protection and abrasion-resistant special construction.
  • Easy Assembly: Integrated installation feature allows for practical maintenance.

Technical Specifications

The table below contains the technical specifications for the 4V100 Series . You can review the values according to the M5 and 1/8" port options.

Feature / Model4V110-M54V120-M54V130-M54V110-064V120-064V130-06
Valve Type5/2 (Single Coil)5/2 (Dual Coil)5/3 (Dual Coil)5/2 (Single Coil)5/2 (Dual Coil)5/3 (Dual Coil)
Port SizeM5 x 0.8G 1/8"
Flow Rate (Cv)10mm² (0.56)10mm² (0.56)7mm² (0.40)12mm² (0.67)12mm² (0.67)9mm² (0.50)
Working Pressure0.15 - 0.8 MPa
Maximum pressure1.2 MPa
Operating Temperature-5 ~ 50°C
Voltage OptionsAC220V, DC24V, DC12V, AC110V
Power ConsumptionAC: 2.5VA / DC: 2.5W
Protection ClassIP65 (Class F Insulation)
Response Time0.05 seconds

⚙️ Performance Data for 4V and 4A Series (5/2 and 5/3 Way)

Model (Item No.)M5 Series (M5x0.8)06 Series (G1/8")
4V110-M5
4V120-M5		4V130C/E/P-M54V110-06
4V120-06		4V130C/E/P-06
Valve Type5/25/35/25/3
Flow Rate10mm² (Cv=0.56)7mm² (Cv=0.40)12mm² (Cv=0.67)9mm² (Cv=0.50)

3V and 3A Series (3/2 Way) and General Technical Specifications

Model (Item No.)3V110-M5 / 3V120-M5
3A110-M5 / 3A120-M5		3V110-06 / 3V120-06
3A110-06 / 3A120-06
Valve Type3/2 (3-Way 2-Position)
Flow Rate10mm² (Cv=0.56)12mm² (Cv=0.67)
Connection PortsInlet = Outlet = Exhaust = M5x0.8Inlet = Outlet = Exhaust = G1/8"
Common Technical Specifications (For All Series)
Working FluidCompressed Air (filtered at 40µm)
Working PrinciplePilot Type
Working Pressure0.15 - 0.8 MPa
Maximum Compressive Strength1.2 MPa
Ambient Temperature-5 ~ 50°C
Voltage Tolerance±10%
Power ConsumptionAC: 2.5VA / DC: 2.5W
Protection and IsolationClass F / IP65 Standards
Electrical ConnectionWired (Lead Wire) or Socketed (DIN Type)
Maximum Operating Frequency5 Cycles/second
Response Time0.05 seconds

Ordering Code Key

To select the correct product, use the following coding structure (e.g., 4V110-06-AC220V ):

Code LocationOptionsExplanation
Series 14V / 3V / 4A4V: 5 Way Valve, 3V: 3 Way Valve, A: Air Control
2. Coil Type10 / 20 / 3010: Single Coil, 20: Dual Coil, 30: 3-Position (Center Closed/Exhaust)
3. PortM5 / 06M5: Metric 5 Thread, 06: G1/8" Thread
4. VoltageA, B, C, D, EA: AC220V, B: DC24V, D: DC12V, E: AC24V
5. TerminalEmpty / LD / WStandard Socket, LD: Socket with LED, W: Wired

⚡ Flow Characteristics

4V110 series valves can provide flow rates exceeding 1000 L/min under 0.7 MPa pressure. They are an ideal solution as directional control valves in packaging, textile, food machinery, and robotic systems.

Keywords: Pneumatic valve, 4v110, 4v120 solenoid valve, 5/2 valve, 24v coil valve, air valve prices, pneumatic cylinder valve.
