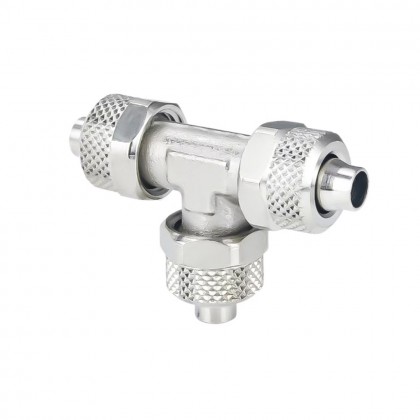

Cmatic MC19 10 10 Metal Series Pneumatic T-Connector Crimping Connector

Size: 10 - 08 - 10

MC19 Union T (T-Type Push-on Connector)

The MC19 series Union T push-on fittings are conical clamping fittings designed for joining pneumatic hoses to form T-connections in three different directions. When tightened, the conical surface grips the hose, providing a high seal.

Areas of Application

• Pneumatic air distribution systems
• Machine and automation applications
• Industrial overhead lines
• Connections requiring high pressure
• Push-on fittings applications

Technical Specifications

• Operating temperature: -40 °C / +150 °C
• Working pressure: -0.99 bar / 25 bar
• Vacuum: -99 kPa
• Body: Electrolytic nickel-plated brass
• Connection type: Push-on (conical clamp)
• Standards: RoHS & REACH compliant
• Feature: Silicone-free structure

Size Chart (MC19)

MC19 Union T fittings are an ideal connection solution for industrial pneumatic applications thanks to their high pressure resistance, robust brass body, and reliable sealing performance.
