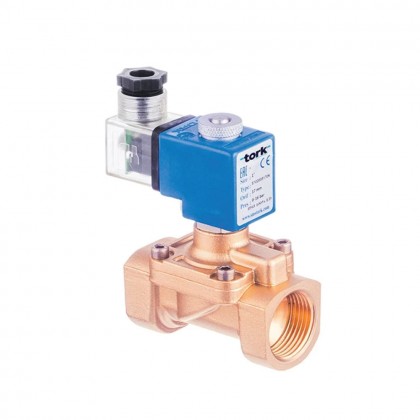

Sms Tork S1000.04 3/4" Servo Assist General Purpose Solenoid Valve – 17 mm – 0-16 Bar – Brass | Normally Closed

The Sms Tork S1000.04 3/4" Servo Assist General Purpose Solenoid Valve is designed to provide reliable, long-lasting, and high-performance flow control in air, water, and gas applications. Thanks to its servo-assist (pilot-assisted) design , it offers highly efficient opening and closing performance with low energy consumption. Its brass body and stainless steel casing ensure a long service life even in demanding industrial conditions.

With a 17 mm orifice diameter, this model is ideal for high flow rate and stable flow control, especially in lines ranging from 3/8” to 1”. It is widely preferred in industrial automation systems, process control lines, water treatment plants, compressor systems, and gas applications.

Key Features

• Product Code: S1000.04
• Connection Size: 3/4"
• Orifice: 17 mm
• Position: Normally Closed (NC)
• Applications: Air, water, gas
• Operating Principle: Servo assist, pilot controlled.
• Body: Brass
• Housing & Core: Stainless steel
• Diaphragm: NBR (optional EPDM, VITON)
• Operating Temperature: -10 °C ~ +80 °C
• Protection Class: IP65 / IP68, Exproof option available.

Working Pressure

• 3/8” – 1”: 0 – 16 bar
• 1 1/4” – 2”: 0 – 3 bar (suitable for water and liquid fluids only)

Coil Voltage Options

AC: 12V – 24V – 48V – 110V – 230V
DC: 12V – 24V – 48V – 110V

Note: You must provide us with the coil voltage information after placing your order.

Areas of Application

• Industrial automation systems
• Process and fluid control lines
• Water treatment and distribution systems
• Pneumatic and compressor systems
• Gas pipelines and machinery manufacturing.

Why choose the SMS Torque S1000 Series Solenoid Valve?

• High efficiency and powerful performance thanks to servo-assisted technology.
• Brass body and stainless steel internal components ensure a long service life.
• Wide range of voltage and protection class options.
• Reliable design that conforms to industrial standards.
• Suitable for harsh environments with IP65 / IP68 and Exproof options.
