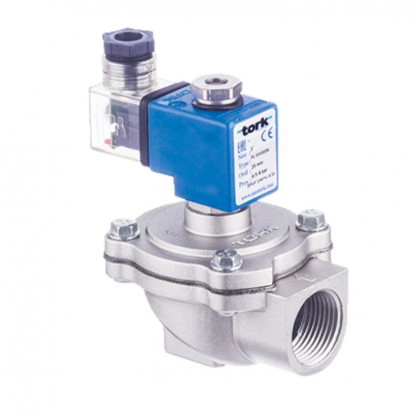

Sms Tork PL101004P Blow-Off Valve 3/4" – 25 mm Orifice – 230 VAC 24VA – Diaphragm Type | Normally Closed

The Sms Tork PL101004P 3/4" Blow-Off Valve is a diaphragm blow-off valve specifically designed for bagged dust collection and filter systems. It creates a high-speed air pulse to effectively clean filters. Thanks to its 25 mm orifice diameter, it provides powerful and sudden air release, improving filter performance and increasing system efficiency.

Its aluminum housing , stainless steel casing-core structure , and various diaphragm options ensure long-lasting use in demanding industrial environments. Thanks to its normally closed design, it safely shuts off the line in case of a power outage. It is widely used in dust collection units, jet pulse filter systems, silo filters, and industrial aspiration facilities.

Key Features

• Model: PL101004P
• Connection Size: 3/4"
• Orifice: 25 mm
• Position: Normally Closed
• Application: Air, bag dust collection filter systems.
• Body: Aluminum
• Housing & Core: Stainless steel
• Diaphragm: NBR, Viton, Thermoplastic (according to size)

Working Pressure

• 3/4" – 1 1/2": 0.5 – 8 bar
• 2" – 3": 3 – 8 bar

Fluid Temperature

• Thermoplastic diaphragm: -40 °C ~ +120 °C
• NBR diaphragm: -10 °C ~ +80 °C
• Viton diaphragm: -10 °C ~ +160 °C

Coil Voltage Options

AC: 12V – 24V – 48V – 110V – 230V
DC: 12V – 24V – 48V – 110V

Areas of Application

• Bagged dust collection filter systems
• Jet pulse filter units
• Silo and bunker filters
• Cement, mining and foundry plants
• Aspiration systems for the food, plastics, and chemical industries.

Why choose the SMS Torque PL1010 Series Blowout Valve?

• High-speed opening and closing with powerful air pulse.
• Maximum efficiency in filter cleaning.
• Aluminum body and stainless steel internal components ensure a long service life.
• Wide diaphragm and temperature options.
• Special design for industrial dust collection systems.
