The MV32 series shuttle valve is a functional valve widely used in pneumatic systems that automatically selects and distributes the higher compressed air from two different air lines. It ensures safe and uninterrupted operation in systems with alternative air sources.
Areas of Application
General pneumatic applications
Alternative air supply systems
Safety and backup air lines
Automation and machine control circuits
Function fittings applications
Technical Specifications
Operating temperature: -20 °C / +80 °C
Working pressure: 2 – 10 bar
Connection sizes: G1/8 – G1/4
Function: Automatically selects high pressure from two inlets.
Standards: RoHS & REACH compliant
Feature: Silicone-free structure
MV32 Series Models

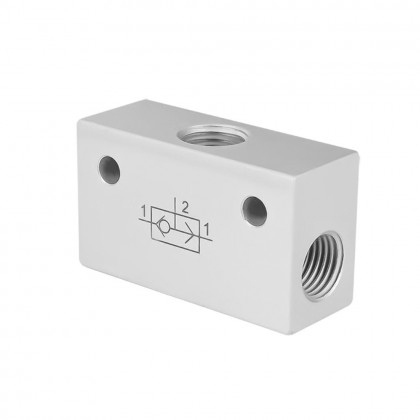

MV32 00 18 – G1/8
MV32 00 14 – G1/4
Product Advantages
It operates without requiring external power.
It enhances system security.
Fast response time
Compact and lightweight design
Easy assembly
Low pressure loss
Durable mechanical structure.
The MV32 shuttle valve is an ideal solution for all applications in pneumatic automation systems that require safety, control, and air line selection.
