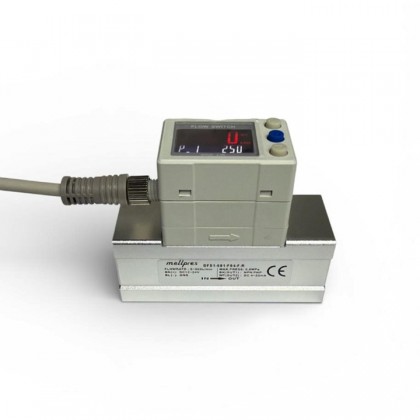

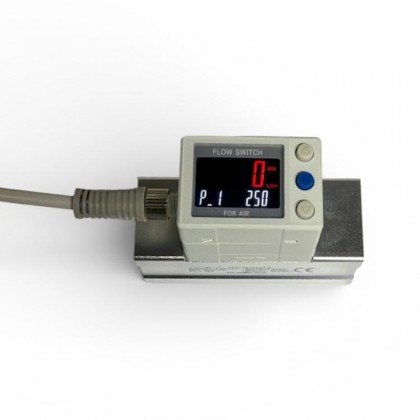

Digital Air Flow Meter 1/2" 10-1000 LT/MIN 1xPNP + 1x4-20mA

Name: Digital Air Flow Meter 1/2" 10-1000 LT/MIN 1xPNP + 1x4-20mA
Brand: MELLPRES - VRB
SKU: DFS1-102-F-04-F-R
Price: 8701.05 TRY
Availability: InStock

New DHL -25 %

Digital Air Flow Meter 1/2" 10-1000 LT/MIN 1xPNP + 1x4-20mA

STOCK: IN STOCK
BRAND: MELLPRES - VRB
STOCK CODE: 020-DFS1-102-F-04-F-R-3502
SKU: DFS1-102-F-04-F-R

Based on 0 reviews. | Write a review

8,701.05 TRY

11,601.40 TRY

Ex Tax: 7,250.88 TRY

Qty

Add to Cart

Description
Reviews

DFS1 Series Smart Digital Flow Sensor (Flow Meter)

Model: Digital Air Flow Meter 1/2" 10-1000 LT/MIN 1xPNP + 1x4-20mA

The DFS1 Series is a professional digital flow meter designed to monitor air consumption in real-time, detect leaks, and maximize energy efficiency in your pneumatic systems. With its dual-line digital display, compact design, and Industry 4.0 compatible output options, it is an essential component for your automation projects.

Energy Saving Tip: With the DFS1 flow sensor, you can detect air consumption (leaks) even when your system is idle, potentially reducing your operating costs by up to 20%.

Key Features

[cite_start]
Wide Measurement Range: Flexible selection with 500 L/min, 1000 L/min, and 2000 L/min models[cite: 18, 20, 21].
[cite_start]
Dual Screen Technology: Simultaneous display of current flow value and threshold setting value[cite: 35].
[cite_start]
Multi-Output Support: NPN/PNP switching outputs plus 4-20mA Analog or 1-5V Voltage output[cite: 32, 145].
Smart Measurement Modes: Hysteresis, Window Comparator, and Accumulated (Total) Flow tracking.
[cite_start]
Easy Installation: Rotatable screen and integrated mounting brackets[cite: 62, 73].

Model Selection and Capacities

Use the table below to select the appropriate flow range for your project:

Model Series	Flow Range (L/min)	Port Size	Application Recommendation
DFS1-501	5 - 500 L/min	Rc 1/8" - 1/4"	Precision grippers, small cylinders, leak testing
DFS1-102	10 - 1000 L/min	Rc 1/4" - 3/8"	General assembly lines, machine inlets
DFS1-202	20 - 2000 L/min	Rc 1/2"	Main air lines, high-consumption presses

General Technical Specifications

[cite_start] [cite_start]

Supply Voltage	12 - 24V DC (±%10) [cite: 51]
Fluid	Filtered Air, Nitrogen (Non-corrosive)
Output Type	NPN/PNP Open Collector + Analog (4-20mA) [cite: 57, 145]
Protection Class	IP40
Operating Temp	0 ~ +50°C (No freezing)

How to Order (Ordering Key)

Detailed explanation of product codes (e.g., DFS1-501-R04-A):

Category	Code	Description
Flow Range	501	5 ~ 500 L/min
	102	10 ~ 1000 L/min
	202	20 ~ 2000 L/min
Thread Type	R	Rc Thread (Standard)
	N	NPT
	F	G Thread
Port Size	04	1/2" (For 501 & 102 models)
Port Size	06	3/4" (For 202 model)
Output Type	A	2 x NPN
	B	2 x PNP
	C	1 x NPN + Analog (1-5V)
	D	1 x NPN + Analog (4-20mA)
	E	1 x PNP + Analog (1-5V)
	F	1 x PNP + Analog (4-20mA)

Wiring Color Codes

Cable Color	Function	Description
[cite_start] Brown [cite: 87]	DC (+)	12-24V Power Supply
[cite_start] Blue [cite: 11]	COM (-)	0V / GND
[cite_start] Black [cite: 29]	OUT 1	Switching Output
[cite_start] White [cite: 89, 95]	OUT 2 / Analog	Switch or Analog Output
