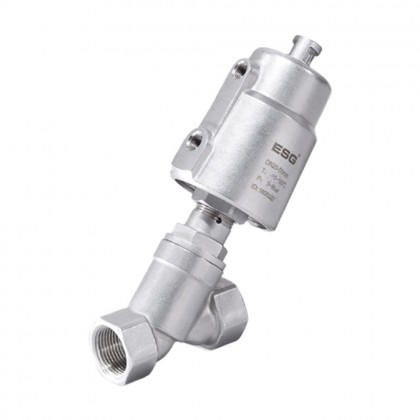

ESG 1-1/2" - 316 Stainless Steel Piston Valve (B) (63mm Actuator)

ESG 1-1/2" - 316 Stainless Steel Piston Valve (B) (63mm Actuator) / Y-Type Pneumatic Piston Valve Features:

• Fluid Pressure: Maximum 16 bar (232 psi)
• Control Pressure: 3-8 bar (43.5-116 psi)
• Control Fluid: Clean compressed air or neutral gas
• Body Material: CF8M/CF8
• Seal Material: PTFE
• Actuator Material: CF8 (40mm-90mm cylinder), AL (90mm-125mm cylinder)
• Actuator Size: 40mm, 50mm, 63mm, 90mm, 125mm
• Applicable Fluid: water, alcohol, oil, fuel, steam, neutral gas or liquid Organic solvent, acid-based solution
• Fluid Viscosity: Maximum 600 mm²/s
• Fluid Temperature: -10°C to +180°C (PTFE standard temperature type) / +25°C — +220°C (PTFE high-temperature type)
• Ambient Temperature: -10°C to +80°C
• Control Type: Single-acting normally closed, normally open, double-acting normally closed, double-acting free position
• Connection: Threaded, welded, flanged, quick-connect
• Leakage rate: DIN EN 12266 Class A
