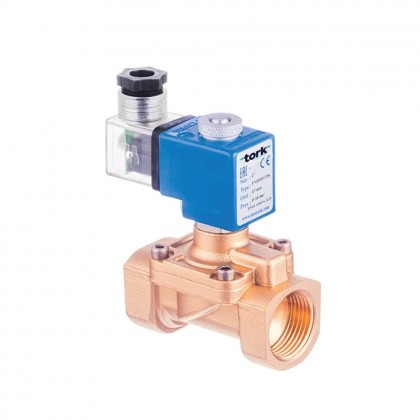

Sms Tork S1000.04 3/4" S1000 Servo Assist General Purpose Solenoid Valve 17mm 0-16 Bar Brass Sealed.

Sms Tork S1000.04 3/4" Servo Assist General Purpose Solenoid Valve 17mm 0-16 Bar Brass Sealed.

Product Code: S1000.04

Technical Specifications:

APPLICATION : Air, water, gas

Measurement: 3/8"...2"

Working Pressure: 0 bar…16 bar (3/8”…1”); 0 bar…3 bar (1 1/4”…2”)

Hive-Core: Stainless steel

Body: Rice

Diaphragm: NBR, EPDM, Viton available upon request.

Operating Temperature: -10°C…80°C

Position: Normally Closed

Coil Voltage: 230V, 110V, 48V, 24V, 12V AC; 110V, 48V, 24V, 12V DC

Protection class: IP65, IP68 (tested underwater at 10 meters for 72 hours) and Exproof models.

NOTE: Please inform us of the coil voltage after purchase.
