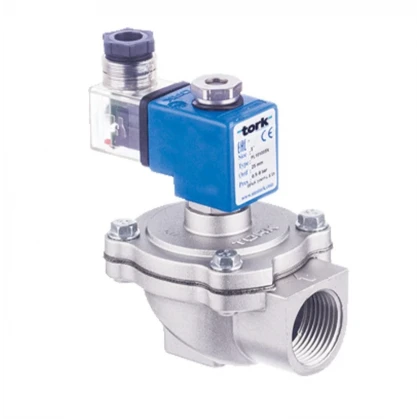

Sms Tork PL101005P 1" Blow-Off Valve – 30 mm Orifice – Thermoplastic Diaphragm – 0.5-8 Bar | PL1010.05

The Sms Tork PL101005P 1" Blow-Off Valve is a diaphragm blow-off valve designed for the rapid and effective cleaning of filter surfaces in bag dust collection and jet pulse filter systems. Thanks to its 30 mm orifice diameter, it creates a powerful and sudden air pulse, improving filter performance and increasing system efficiency.

Its aluminum housing , stainless steel core structure , and thermoplastic diaphragm offer high strength, long service life, and low maintenance requirements. Thanks to its normally closed design, it safely shuts off the line in case of a power outage. It is widely used in dust collection units, silo filters, cartridge filter systems, and industrial aspiration systems.

Key Features

• Stock Code: PL1010.05
• Connection Size: 1"
• Orifice: 30 mm
• Diaphragm: Thermoplastic
• Position: Normally Closed
• Pressure Range: 0.5 – 8 bar
• Fluid Temperature: -40 °C ~ +120 °C
• Flow Rate (Kv): 270 lt/min
• Weight: 0.68 kg
• Application: Air, bag dust collection filter systems.
• Body: Aluminum
• Housing & Core: Stainless steel

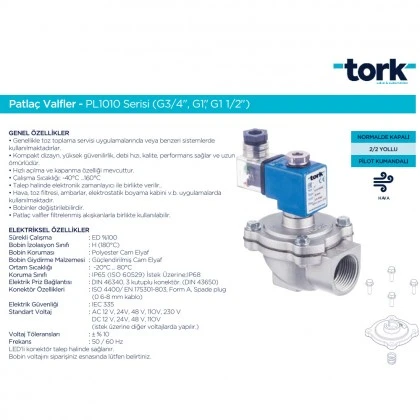

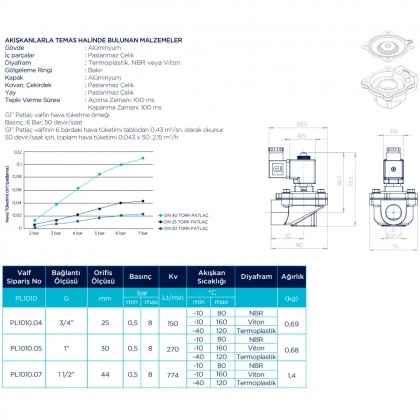

General Technical Specifications

• Diaphragm Options: Thermoplastic, NBR, Viton (custom made)
• Fluid Temperature: Thermoplastic: -40 °C ~ +120 °C | NBR: -10 °C ~ +80 °C | Viton: -10 °C ~ +160 °C
• Coil Voltage: 12V, 24V, 48V, 110V, 230V AC / 12V, 24V, 48V, 110V DC
• Protection Class: IP65 (ISO 60529), optional IP68

Areas of Application

• Bagged dust collection filter systems
• Jet pulse filter units
• Silo and bunker filters
• Cement, mining and foundry plants
• Aspiration systems for the food, plastics, and chemical industries.

Why choose the SMS Torque PL1010 Series Blowout Valve?

• High-speed opening and closing with powerful air pulse.
• Maximum efficiency in filter cleaning.
• Aluminum body and stainless steel internal components ensure a long service life.
• Wide diaphragm and temperature options.
• Special design for industrial dust collection systems.

Note: Please specify the coil voltage after completing your purchase.
