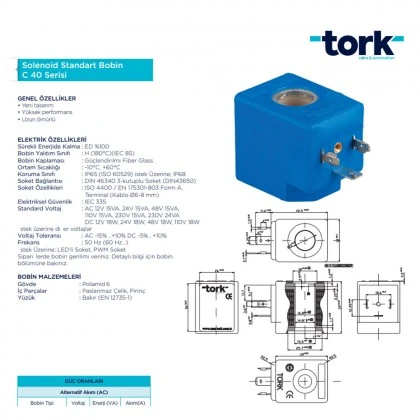

Tork C40 Series Coil 230 VAC 24VA Explosion Valve Coil

SMS TORK C40 Series Burst Valve Coil  230 VAC 24VA IP65

VOLTAGE INFORMATION: 230 VAC 24VA

GENERAL FEATURES:

Voltage tolerance: +/- 10%

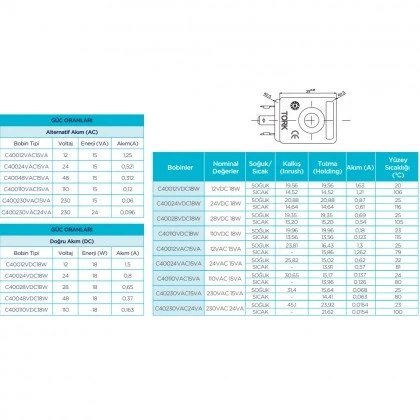

Coil power: 15 VA Standard production for alternating current coils. 220/230 V AC, 110 V AC, 24 V AC, 12 V AC / 18 Watt DC voltage coils (110 VDC, 24 V DC, 12 V DC)

Protection class: IP 65 (IP 68 and ATEX-certified series available upon request)

Coil wire insulation: Class H, max. 180°C

Housing material: Flame-retardant industrial plastic

Operating ambient temperature: -20 to 60°C

Electrical connection: Socket, 3-pole (Phase, Neutral, and Ground)

Suitable socket: C80 series socket (standard type)

C82 series, PMW energy-saving socket (provides 85% energy savings) (recommended for DC voltages)

Important Warning: Do not supply power to the coil when it is idle; power should only be supplied when the valve is engaged. Coil grounding must be performed for safety reasons.
