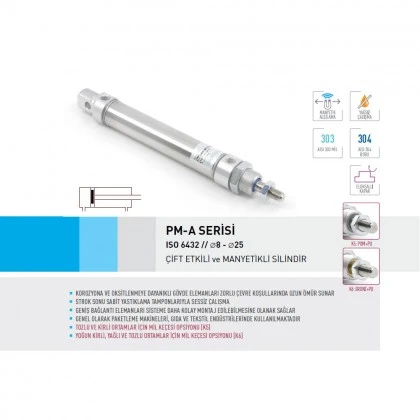

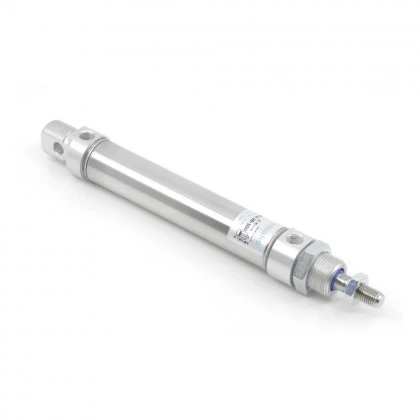

Pemaks PM-A 012-100 Double-Acting Magnetic Pen Roller ISO 6432
Cylinder Series: PM-A
Diameter Ø: 012
Stroke (mm): 100
PM Series ISO 6432 Round Cylinder (SNA)
PM Series pneumatic cylinders are compact, magnetic piston cylinders conforming to the ISO 6432 standard. Their uncushioned design ensures fast and stable operation. Corrosion-resistant housing elements provide a long service life even under demanding operating conditions.
General Features
Corrosion and oxidation resistant body structure.
Quiet operation thanks to fixed end-of-stroke cushioning pads.
Easy assembly with a wide range of fastener options.
Compact design allows for use in confined spaces.
Suitable for sensor use thanks to its magnetic piston structure.
It can operate with oil-lubricated or oil-free air.
Force Ratings (6 Bar)
Cylinder Ø (mm)
Mile Ø (mm)
Thrust Force (N)
Tensile Force (N)
8
4
30
23
10
4
47
40
12
6
68
51
16
6
121
104
20
8
189
158
25
10
295
247
Working conditions
Working Fluid
Filtered and lubricated or filtered and oil-free air
Operating Temperature
Polyurethane (PU): -20 °C ~ +80 °C
Viton (FKM): -30 °C ~ +150 °C
Maximum Working Pressure
10 Bar
Areas of Application
Automation and machine applications
Packaging machines
Food and light industrial machinery
Assembly lines
General industrial applications
Advantages of the PM Series
PM Series ISO 6432 cylinders provide long-lasting and reliable operation thanks to their compact design and robust construction. The magnetic piston structure allows for sensor integration, while corrosion-resistant materials ensure high performance in harsh environmental conditions.
