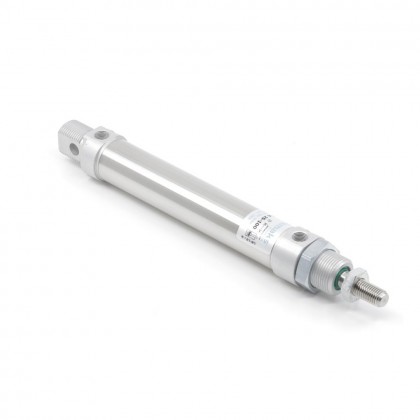

Pemaks PMY-A 020-80 Double-Acting Magnetic Cushioned Pen Roller ISO 6432
Cylinder Series: PMY-A
Diameter Ø: 020
Stroke (mm): 80
PM Series ISO 6432 Round Cylinder (SYA)
PM Series pneumatic cylinders are compact cylinders with adjustable cushioning and magnetic pistons, conforming to the ISO 6432 standard. Their corrosion-resistant housing ensures long-lasting use even in harsh environmental conditions.
Product Features
Cushioning
Adjustable cushioning
Perception
Magnetic detection (sensor compatible)
Working Type
Suitable for oil-free operation.
Shaft Material
AISI 303 Stainless Steel
Cover Structure
Anodized cover
Pipe Material
AISI 304 Stainless Steel
General Features
Corrosion and oxidation resistant body structure.
Quiet and controlled operation thanks to adjustable cushioning.
Easy assembly with a wide range of fastener options.
Suitable for use in confined spaces thanks to its compact design.
Magnetic piston and sensor integration.
Force Ratings (6 Bar)
Cylinder Ø (mm)
Mile Ø (mm)
Thrust Force (N)
Tensile Force (N)
16
6
121
104
20
8
189
158
25
10
295
247
Working conditions
Working Fluid
Filtered and lubricated or filtered and oil-free air
Operating Temperature
Polyurethane (PU): -20 °C ~ +80 °C Viton (FKM): -30 °C ~ +150 °C
Maximum Working Pressure
10 Bar
Areas of Application
Automation systems
Packaging machines
Food and light industrial machinery
Assembly lines
General industrial applications
Advantages of the PM Series
PM Series ISO 6432 cylinders offer long-lasting, quiet, and reliable operation thanks to their adjustable cushioning and stainless steel body construction. Magnetic piston design allows for sensor integration, resulting in high performance in automation systems.
