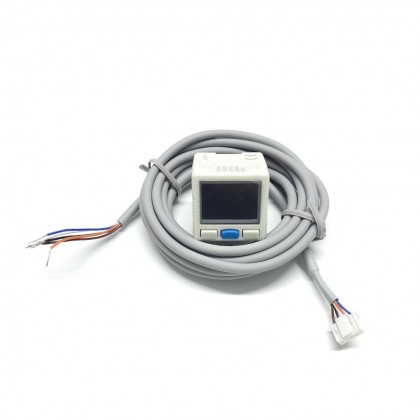

Digital Pressure Sensor with Display -1 / +1 bar G1/8 - 2xPNP Outlets

Name: Digital Pressure Sensor with Display -1 / +1 bar G1/8 - 2xPNP Outlets
Brand: MELLPRES - VRB
SKU: DPS-201GP
Price: 1569.52 TRY
Availability: InStock

-25 %

Digital Pressure Sensor with Display -1 / +1 bar G1/8 - 2xPNP Outlets

STOCK: IN STOCK
BRAND: MELLPRES - VRB
STOCK CODE: 020-DPS-201GP-102
Weight: 0.26kg
SKU: DPS-201GP

Based on 0 reviews. | Write a review

1,569.52 TRY

2,092.69 TRY

Ex Tax: 1,307.93 TRY

Qty

Add to Cart

Description
Reviews

Digital Pressure Sensor with Display -1 / +1 bar G1/8 - 2xPNP Outlets

DPS Series Digital Pressure Sensor

The DPS Series digital pressure sensors are designed for industrial pressure measurement applications, featuring a dual-line LCD display, high-precision measurement capabilities, and multiple output options. Their compact design and adjustable display modes ensure ease of use.

General Features

LCD screen display
4 different screen modes
2 x NPN or 2 x PNP output options
Dual-line LCD display with 4-digit value display.

Technical Specifications

Measurement Range	DPS-201: -100kPa ~ 100kPa DPS-210: 0 ~ 1,000MPa
Adjustment Range	DPS-201: -100kPa ~ 100kPa DPS-210: 0 ~ 1,000MPa
Strength Pressure	DPS-201: 500kPa DPS-210: 1.5MPa
Pressure Type	Measurement for non-flammable and non-corrosive gases.
Measurement Accuracy	±2% FS (at 25°C ambient temperature)
Temperature Error	±3% FS (0 ~ 50°C)
Measurement Method	Hysteresis mode / Upper-lower limit comparison
Connection Size	Available in R1/8, NPT1/8, G1/8, with M5 internal thread.
Screen	Dual LCD screens
Screening	4-digit measurement value, unit and output status indicator.
Screen Mode	Adjustable backlight, 4 different screen modes.
Supply Voltage	12 ~ 24VDC ±10%
Power Consumption	Max. 40mA
Transistor Output	NPN or PNP, max. 80mA, voltage drop ≤1V
Analog Output	1~5V or 4~20mA options
Response Time	2.5ms / 20ms / 100ms / 500ms / 1000ms / 2000ms
Short Circuit Protection	There is
Protection Class	IP40
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C
Moisture	35% ~ 80% RH
Insulation Voltage	1000VAC / 1 minute
Insulation Resistance	≥50MΩ (500VDC)
Impact Resistance	Max. 100 m/s², 3 times (x, y, z directions)
Vibration	1.5mm amplitude, 10Hz~500Hz, 2 hours in each direction.

Coding Structure

Code	Explanation
Sherry	DPS-2
Pressure Range	10: -100~1000kPa 01: -100~100kPa
Connection Type	R: R1/8 N: NPT1/8 G: G1/8
Exit	N: NPNx2 P: PNPx2 A: NPN + Analog 4~20mA V: NPN + Analog 1~5V B: PNP + Analog 4~20mA W: PNP + Analog 1~5V
Assembly	M: Panel N: Panel + Protection Z: L Bracket S: S Bracket
