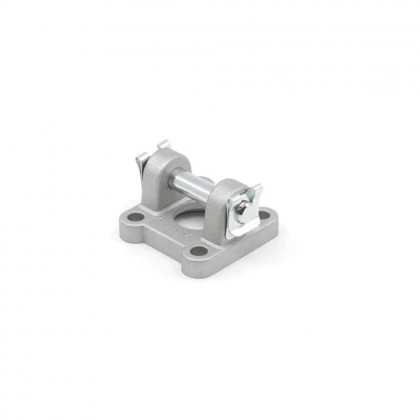

EB Clevis Mounting Bracket (MP2)

EB MP2 Clevis Mounting is a rear pivot mounting accessory for pneumatic cylinders. It allows angular movement and compensates misalignment, ensuring smooth and stable operation.

Function

Provides pivot mounting from the rear side of the cylinder and reduces mechanical stress in moving systems.

Compatible Series

Ø32 – Ø100: PAG, PNS

Ø125 – Ø320: PNS

General Features

• Rear clevis mounting
• Compensates alignment deviations
• Easy installation
• Durable construction

Technical Information

Product Type: Clevis Mounting (MP2)

Material: Aluminum / Cast Iron for large sizes

Technical Table — Ø32 ~ Ø100

Technical Table — Ø125 ~ Ø320
