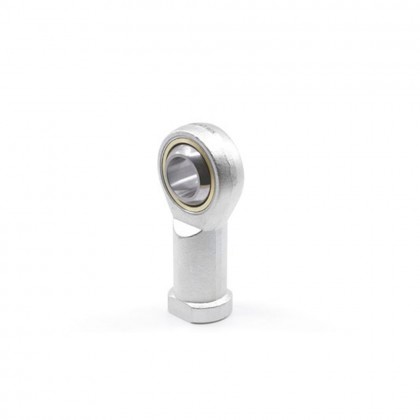

KMB Global Joint Connector (AP4)

KMB Ball Joint (AP4) compensates for axial misalignments that may occur at the shaft end connection of pneumatic cylinders, ensuring smoother and safer movement. Thanks to its high-strength steel structure, it offers long-lasting and durable use.

Product Function

The ball joint component compensates for misalignment errors that may occur at the cylinder shaft end, reducing mechanical stress and helping the system operate more smoothly.

Compatible Cylinder Series

Compatible with cylinder diameters of Ø12 – Ø320 mm.

It can be used with ISO, DMC, PNY, ISP, PST, PNC, PMB, PAG, PNS, and PM series.

General Features

• It compensates for axial misalignment at the shaft end connections.
• It balances the load distribution in moving systems.
• Durable steel material
• Long service life
• Easy assembly and maintenance.

Technical Information

Product Type: Ball Joint Connector (AP4)

Material: Steel

Application: Pneumatic cylinder shaft end connections.

Product Dimensions and Technical Specifications

Areas of Application

• Pneumatic cylinder systems
• Automation and machine applications
• Moving mechanical systems
• Industrial production lines

Advantages of the KMB Series

KMB Ball Joints reduce alignment errors in cylinder and mechanical systems, ensuring more stable and longer-lasting operation. Thanks to their high-strength steel structure, they offer reliable performance under heavy-duty conditions.
