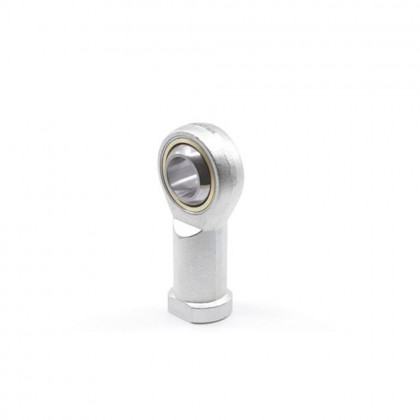

Pemaks Global Joint Shaft End 050/063 Cylinder Compatible
Cylinder Size: Ø50-63
Connection Dimension: M16 x 1.5
KMB Global Joint Connector (AP4)
KMB Ball Joint (AP4) compensates for axial misalignments that may occur at the shaft end connection of pneumatic cylinders, ensuring smoother and safer movement. Thanks to its high-strength steel structure, it offers long-lasting and durable use.
Product Function
The ball joint component compensates for misalignment errors that may occur at the cylinder shaft end, reducing mechanical stress and helping the system operate more smoothly.
Compatible Cylinder Series
Compatible with cylinder diameters of Ø12 – Ø320 mm.
It can be used with ISO, DMC, PNY, ISP, PST, PNC, PMB, PAG, PNS, and PM series.
General Features
It compensates for axial misalignment at the shaft end connections.
It balances the load distribution in moving systems.
Durable steel material
Long service life
Easy assembly and maintenance.
Technical Information
Product Type: Ball Joint Connector (AP4)
Material: Steel
Application: Pneumatic cylinder shaft end connections.
Product Dimensions and Technical Specifications
Numerical Code
Product Code
Cylinder Ø (mm)
2046001
KMB-6-M6
12-16
2046002
KMB-8-M8
20
2046003
KMB-10-M10x1.25
25-32
2046004
KMB-12-M12x1.25
40
2046005
KMB-16-M16x1.50
50-63
2046006
KMB-20-M20x1.50
80-100
2046008
KMB-30-M27x2.0
125
2046010
KMB-35-M36x2.0
160-200
2046013
KMB-40-M42x2.0
250
2046015
KMB-50-M48x2.0
320
Areas of Application
Pneumatic cylinder systems
Automation and machine applications
Moving mechanical systems
Industrial production lines
Advantages of the KMB Series
KMB Ball Joints reduce alignment errors in cylinder and mechanical systems, ensuring more stable and longer-lasting operation. Thanks to their high-strength steel structure, they offer reliable performance under heavy-duty conditions.
