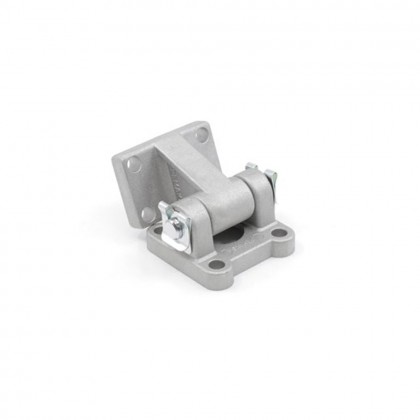

Pneumatic Cylinder Joint Connection 0125 ISO 15552
Diameter: Ø125
EYB Joint Location Connection (MP2+AB7)
The EYB Joint Ground Connection (MP2+AB7) is a mounting element that enables pneumatic cylinders to be connected to the ground in an articulated manner. By making the cylinder's connection to the ground movable, it ensures axial alignment and stable operation.
Function
It makes the cylinder's connection with the ground mobile and reduces mechanical stress.
Compatible Series
Ø32 – Ø100: PAG, PNS
Ø125 – Ø320: PNS
General Features
Articulated floor connection
Provides alignment tolerance in moving systems.
Easy assembly
Durable construction
Technical Information
Product Type: Articulation Connector (MP2+AB7)
Material: Aluminum / Cast Iron for larger diameters
