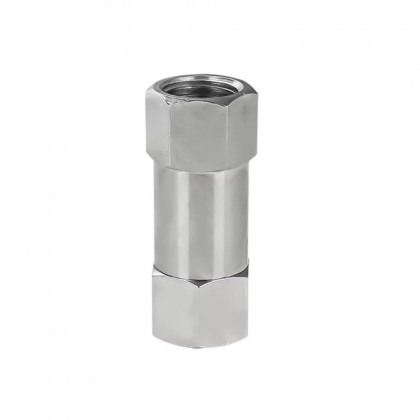

Italian Cmatic MV23 00 12 Check Valve

MEASUREMENT: G½

MV23 In-line Check Valve – 2-10 Bar

The MV23 Series In-Line Check Valve is a compact and high-strength check valve that ensures airflow in only one direction in pneumatic systems, automatically preventing backflow. It protects the system against pressure returns, increases equipment safety, and ensures stable operation.

Its nickel-plated brass body, stainless steel valve mechanism, and NBR sealing elements ensure long-lasting use. It is reliably used in general pneumatic applications, automation systems, and functional fittings solutions.

General Technical Specifications

• Product Series: MV23
• Function: Line type check valve
• Working Pressure: 2 – 10 bar
• Operating Temperature: -20 °C / +80 °C
• Application: General pneumatic applications, functional fittings
• Compliance: RoHS, REACH, silicone-free.

Material Structure

• Body: Nickel-plated brass CW614N (UNI EN 12164)
• Valve Mechanism: Stainless steel AISI 302
• Internal Parts: Nickel-plated brass CW614N
• Spring & Seal: NBR

Connection Options

Flow Performance

MV23 series check valves offer high flow rate performance with low pressure drop. They have been tested at an inlet pressure of 6 bar and a differential pressure of 1 bar. They provide high air permeability in the range of 1/8” – 1/2” depending on the connection diameter.

Product Advantages

• It prevents backflow instantly.
• Low pressure loss
• Compact metal housing
• High flow capacity
• Long service life

Areas of Application

• Pneumatic line protection
• Cylinder and actuator systems
• Compressor outlet lines
• Automation and machine manufacturing
• All systems requiring pressure direction control.

Why MV23 Check Valve?

• It protects the system from back pressure.
• It ensures a stable and safe flow.
• Durable brass body
• Wide range of connector size options.
• Fully compatible with industrial pneumatic systems.
