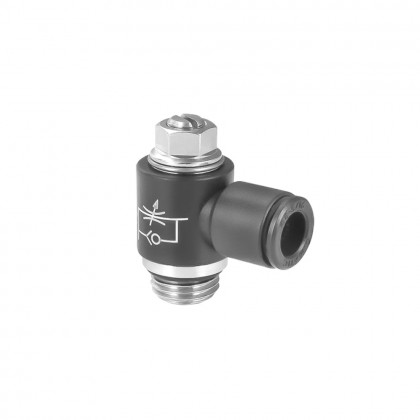

Cmatic MV38 08 14/V-Type Screwdriver Type Technopolymer Speed Adjustment Valve

Size: G 1/4 - 14

MV38 Flow Control – Rotary Head Push-In Flow Control Valve

The MV38 series flow control valve is a rotatable acetal push-in flow control element used for precise air flow adjustment in pneumatic systems. It offers reliable and stable performance in applications requiring cylinder speed control and line flow rate control.

Areas of Application

• General pneumatic applications
• Cylinder speed adjustment
• Automation and machine lines
• Function fittings applications
• Assembly and packaging machines

Technical Specifications

• Operating temperature: -20 °C / +70 °C
• Working pressure: 0 – 10 bar
• Connection type: Swivel head push-in (acetal)
• Standards: RoHS & REACH compliant
• Feature: Silicone-free structure

Measurement and Coding Table (MV38)

MV38 flow control valves are the ideal solution for all applications in pneumatic systems where precise adjustment of cylinder speed control and air flow rate is required.
