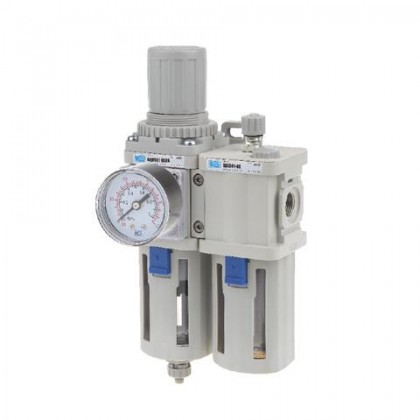

KCC KAU401AG Conditioner 1/2 with Pressure Gauge FR+L

STOCK: IN STOCK
BRAND: KCC
STOCK CODE: 005-AP KAU401AG-04G-1465
SKU: KAU401AG-04G

5,123.60 TRY

Ex Tax: 4,269.66 TRY

Description
Reviews

KCC KAU401AG Conditioner 1/2 with Pressure Gauge FR+L

Measurement: ½

KAU201A~601A Series Air Preparation Unit (Filter + Regulator + Lubricator)

The KAU201A~601A Series air preparation units are a modular solution that combines filtration, pressure regulation, and lubrication in a single unit for pneumatic systems. Thanks to its compact design and wide range of configuration options, it offers safe and efficient use in industrial air lines.

General Features

Filter + regulator + lubricator integrated structure.
Modular design offers various combination options.
Wide range of mounting and housing size options.
Transparent or metal bowl options.
Standard or non-relief regulator option.

Model Options

Model	Connection Size
KAU201A	1/8", 1/4"
KAU301A	1/4", 3/8"
KAU401A	3/8", 1/2"
KAU601A	3/4", 1"

Modular Structure Options

Code	Combination
Nile	KAF + KAR + KAL
A	KAW + KAL
B	KAF + KAR
C	KAF + KAFM + KAR
D	KAW + KAFM
TO	KAFM + KAFU + KAR
F	KAW + KAFM + KAFU

Tooth Type

Code	Explanation
Nile	Rc(PT) – Standard
G	G Tooth
N	NPT

Port Dimensions

Port Code	Connection Size	KAU201	KAU301	KAU401	KAU601
01	1/8"	●	-	-	-
02	1/4"	●	●	-	-
03	3/8"	-	●	●	-
04	1/2"	-	-	●	-
06	3/4"	-	-	-	●
10	1"	-	-	-	●

Filtration Level

Code	Filter Sensitivity
Nile	5 µm (Standard)
2	20 µm (Optional)
4	40 µm (Optional)

Drainage Options

Code	Explanation
Nile	Manual Drainage (Standard)
D	Automatic Drainage (NO)

Pressure Gauge Options

Code	Explanation
G	Internal pressure gauge (1.0 MPa)
H	Without pressure gauge (including port)
T	External pressure gauge (1.0 / 0.4 / 0.2 MPa)

Pressure Adjustment Range

Code	Adjustment Range
Nile	0.05 ~ 0.85 MPa (Standard)
2	0.02 ~ 0.2 MPa
4	0.02 ~ 0.4 MPa

Regulator Release Option

Code	Explanation
Nile	Relief (Standard)
N	Non-Relief

Technical Specifications

Strength Pressure	1.5 MPa
Maximum Working Pressure	1.0 MPa
Pressure Adjustment Range	0.05 ~ 0.85 MPa
Ambient & Fluid Temperature	-5 ~ 60 °C
Filtration	5 µm (Standard) / 20 µm / 40 µm
Bowl Ingredients	Polycarbonate / Metal / Transparent Nylon
Regulator Structure	Relief / Non-Relief
