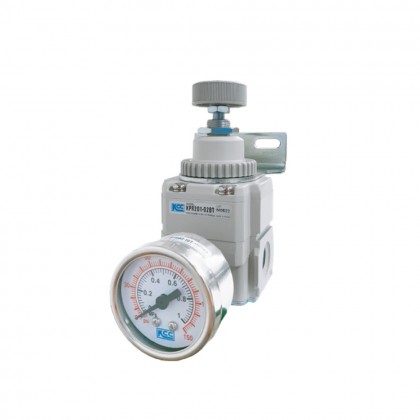

KCC KPR201 Precision Regulator 1/4" 0.10-4 Bar KPR201-G02-BT-4

KCC KPR201 Precision Regulator 1/4" 0.10-4 Bar KPR201-G02-BT-4

STOCK: IN STOCK
BRAND: KCC
STOCK CODE: 005-AP KPR201-G02-BT-4-1485
SKU: KPR201-G02-BT-4

6,326.07 TRY

Ex Tax: 5,271.73 TRY

Description
Reviews

KCC KPR201 Pneumatic Precision Regulator with Bracket KPR201-G02-BT-4

Size: 1/4"

KPR Series Precision Pressure Regulator

The KPR Series Regulator is a compact regulator developed to provide highly precise and stable pressure regulation in pneumatic air systems. Its 50 mm body width allows for easy installation in confined spaces, and it can be used with the KAF201 and KAFM201 air preparation products.

Key Features

Precise and stable pressure regulation.
Compact design (50 mm body width)
Smooth and precise pressure adjustment.
Combinable design with KAF201 and KAFM201.

Model Options

Model	Connection Size
KPR101	Rc(PT) 1/8" (Under Development)
KPR201	Rc(PT) 1/4"
KPR301	RC(PT) 1/4", 3/8", 1/2" (Under Development)

Thread Type

Code	Explanation
Nile	Rc(PT) – Standard
G	G Tooth
N	NPT

Port Dimensions

Port Code	Connection Size	KPR101	KPR201	KPR301
01	Rc(PT) 1/8"	●	-	-
02	Rc(PT) 1/4"	-	●	●
03	Rc(PT) 3/8"	-	-	●
04	Rc(PT) 1/2"	-	-	●

Bracket (Mounting Bracket)

Code	Explanation
Nile	No Bracket (Standard)
B	With brackets

Pressure Gauge Options

Code	Explanation
Nile	No pressure gauge.
T	External pressure gauge (1.0 / 0.4 / 0.2 MPa)
P	Digital Pressure Switch

Pressure Adjustment Range

Code	Pressure Range
8	0.01 ~ 0.8 MPa
4	0.01 ~ 0.4 MPa
2	0.005 ~ 0.2 MPa

Technical Specifications (KPR201)

Fluid	Compressed air
Strength Pressure	1.5 MPa
Maximum Working Pressure	1.0 MPa
Minimum Working Pressure	Adjustment pressure + 0.1 MPa
Pressure Adjustment Range	0.01 ~ 0.8 / 0.4 / 0.2 MPa
Sensibility	≤ 0.2% (Full Scale)
Repeatability	≤ ±0.5% (Full Scale)
Air Consumption	1.7 L/min (ANR)
Port Size	Rc(PT) 1/4"
Pressure Gauge Port	RC(PT) 1/8" (2 Pieces)
Ambient & Fluid Temperature	5 ~ 60°C / Digital: 0 ~ 50°C (Non-freezing)
Weight	0.32 kg
